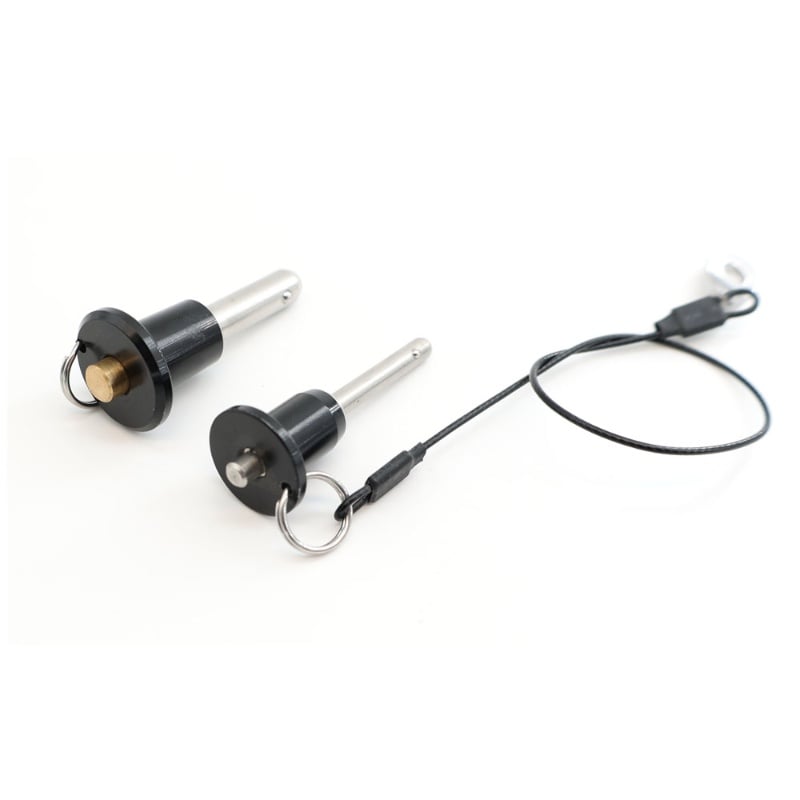

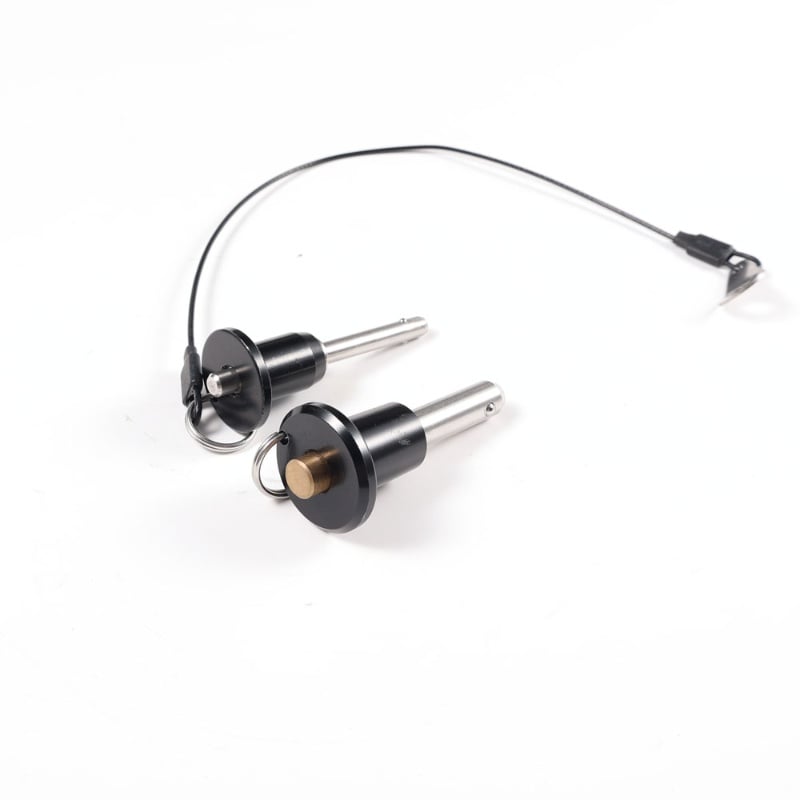

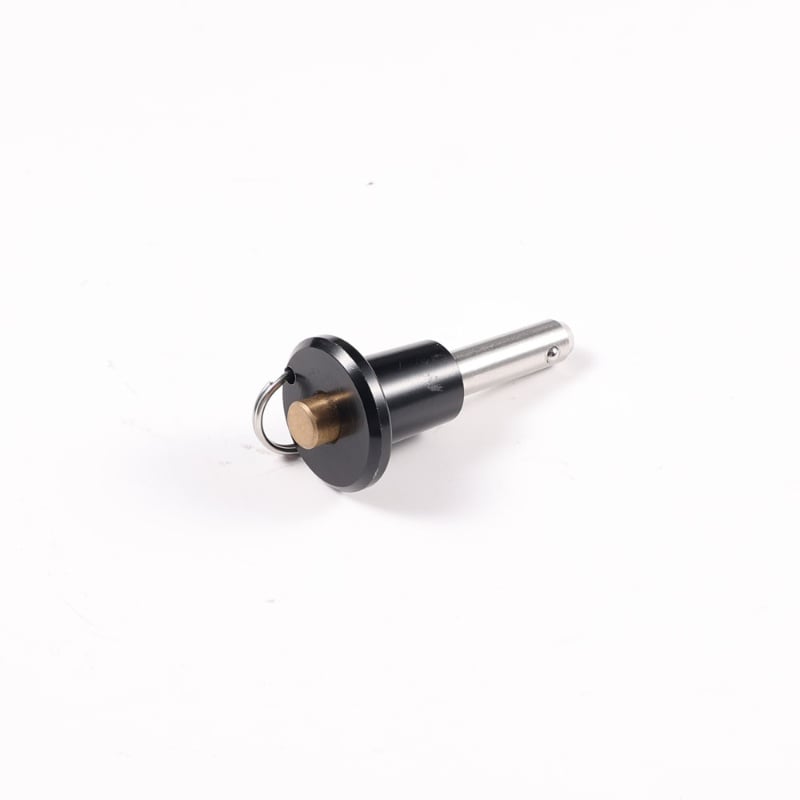

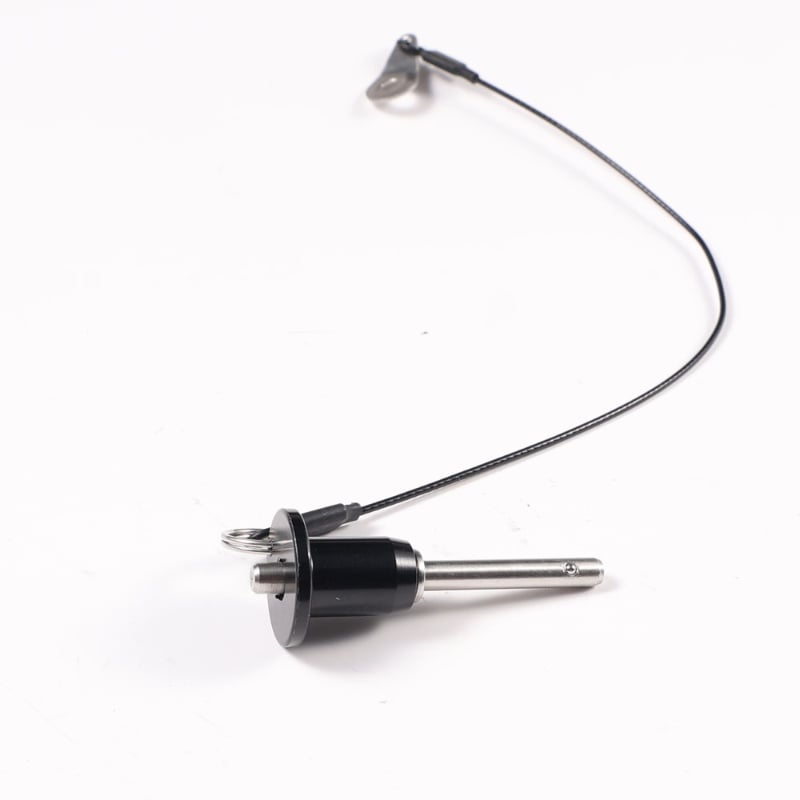

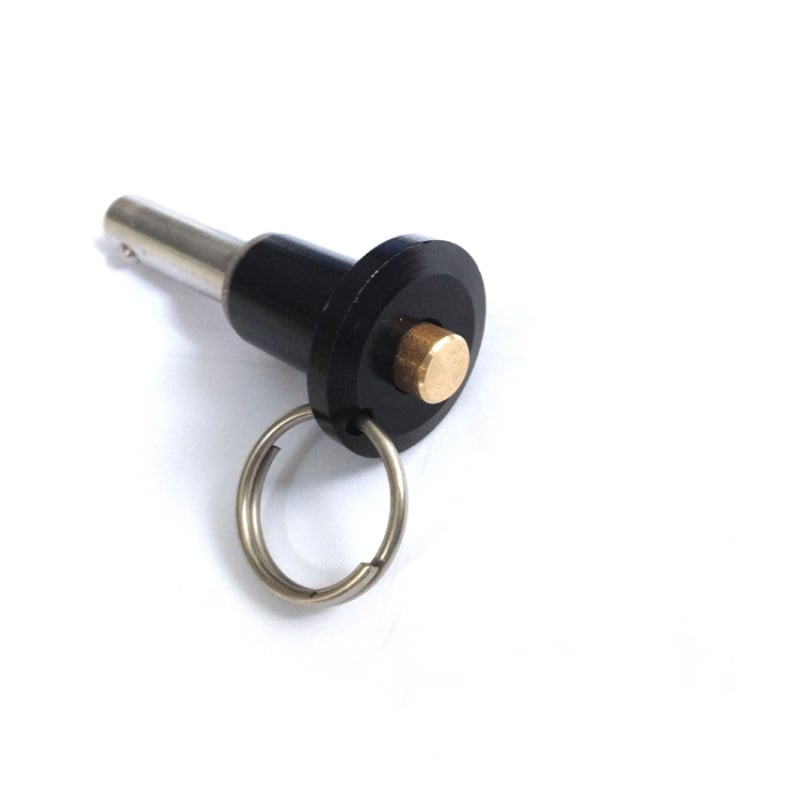

Stainless stee cup handle quick release ball lock pin

Stainless stee cup handle quick release ball lock pin

  • Features
  • Specification
  • Description
  • Quick Details
  • Inquiry
  • Related Products

Features

Quick Details:

Body: Stainless steel 304/316/17-4PH

Locking pin: Stainless steel

Button: Push button

Handle: Cup handle

Size: M5 M6 M8 M10 M12 M16 or inch sizes

Ball quantity: 1/2 /3/4 pcs


Specificiation


ModelMaterial
BodyCupheadButtonSpringBallRing
Y106CStainlesssteelStainlesssteelStainlesssteelStainlesssteelStainlesssteel-

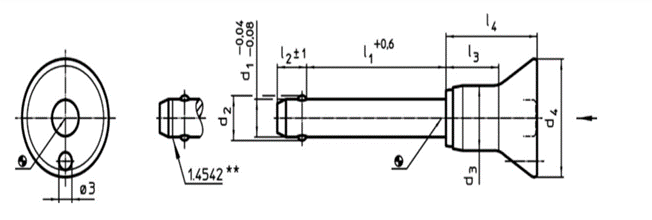

d1    (metric)d1(inch)d2d3d4l1l2l4ReceivingholeH11Shearingforce double shear max. kN
5mm3/165.2514250.5/0.75/1/1.25626.53/1613
6mm1/47.214250.5/0.75/1/1.25/1.5/1.75/26.926.51/424
8mm5/169.514251/1.25/1.5/1.75/27.926.55/1638
10mm3/811.519331/1.25/1.5/1.75/28.834.63/854
-7/161319331/1.25/1.5/1.75/2/2.5/39.734.67/1674
12mm1/21519331/1.25/1.5/1.75/2/2.5/31034.61/296
16mm5/81920331/1.25/1.5/1.75/2/2.5/313.334.65/8150

Description

Quick Release Pin material can be stainless steel 304, stainless steel 316, 17-4Ph stainless steel, Alloy Steel,

Quick release pin, also called ball lock pin, ball locking pin, self-locking pin,

We use a quick release pin when we need a positive stop. There is spring inside the pin, when we press the button, the pins can be quick released and slip into holes in the components. Then we release the button, the balls at the end of the pin will lock and fasten the components. There are usually 2-3 balls at the end of the pin.

To choose a right quick release pin, diameter and grip length is needed. The hole in the components used determines the pin diameter, the grip length, also called usable length, is the length between the the bottom of the handle and the top ofthe balls.

Wuxi Sunny has a great variey of quick release pins, we list some per below:

Button Handle, Ring Handle, T Handle, L Handle, Marine Style, Heavy Duty, Recessed

Button Handle, Marine Hitch Quick Release pin, Ring Handle Marine Handle Pin

Indexing plungers

Wire lock pin

Hitch pin

Lynch pin

Spring pin

Cylindrical pin
