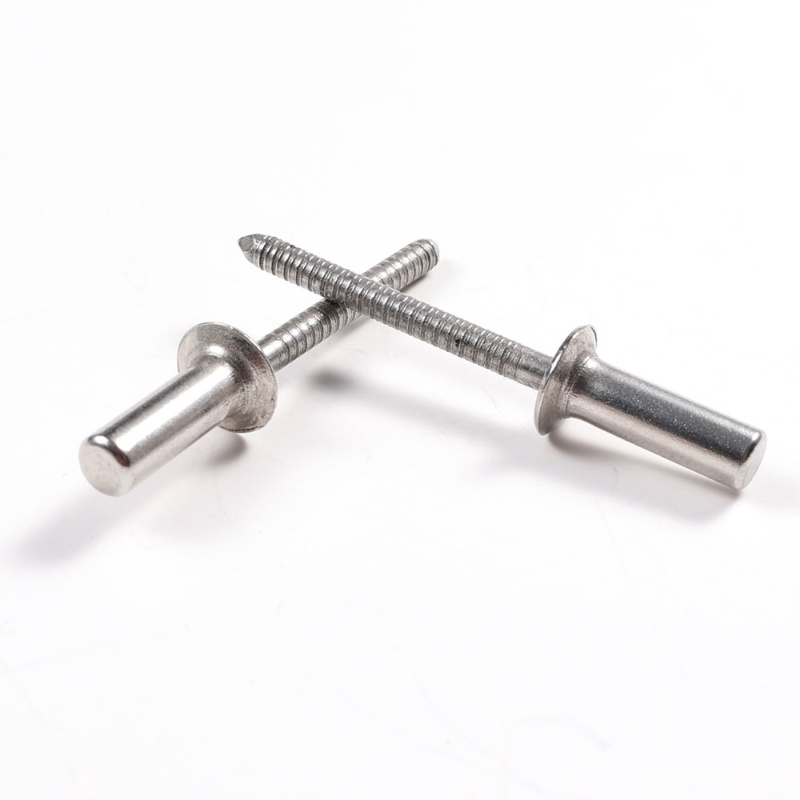

Stainless Steel Closed end Seal Type Blind Pop Rivet

Stainless Steel Closed end Seal Type Blind Pop Rivet

  • Features
  • Specification
  • Description
  • Quick Details
  • Video
  • Inquiry
  • Related Products

Features

Quick Details:

Diameter: 3.2mm, 4mm, 4.8mm, 6mm

Material:  Stainless Steel 304/316

Color:  Plain

Type: Closed end type

Head type: Dome head

Large stock and quick delivery time


Specificiation


RIVET SIZEDRIVET LENGTHGRIP RANGEHEAD  DIAHEAD  HEIGHTMANDREL  DIAHOLE SIZE (DRILL)
L [+1/-0]MIN-MAXdkk(MAX.)dm(MAX).Ф
3.26.50.5-2.05.8-6.71.323.3
82.0-3.5
9.53.5-5.0
115.0-6.5
12.56.5-8.0
480.5-3.56.9-8.41.72.454.1
9.53.5-5.0
115.0-6.5
12.56.5-8.0
158.0-10.5
4.881.0-3.08.3-10.122.954.9
9.53.0-5.0
115.0-6.5
136.5-8.0
14.58.0-9.5
169.5-11.0
1811.0-13.0
2113.0-16.0
2516.0-20.0
6.412.51.5-6.011.6-13.42.73.96.5

Description

Blind rivets, also known as pop rivets, it is composed of rivet body (hat)and mandrel (stem), it is used to joint two components whose both sides is limited, Blind rivet is inserted into the pre-drilled hole, a pop rivet gun will help draw the mandrel into the rivet body, the force will expand the diameter of the rivet body, and lock the sheets permanently.

Blind rivets usually apply to metals, plastics, it can be also used in wood and leathers.

WUXI Sunny has a large variety of stock blind rivet per below:

Dome head blind rivet, Flat Countersunk head blind rivet, Large Dome head blind rivet;

Open end blind rivet, Closed/Sealed End blind rivet ;

Multi Grip Blind Rivet, Peel Type blind rivet,Trifold blind rivet, Structural Blind rivet;

Multi-grip rivet features a wide grip range that can be used in any application requiring open end blind rivets, grip range capacity of multi-grips is up to 3 standard open blind ones.

Trifold blind rivet ,known as exploding rivet, tri-bulb, tri tite, bulb tite , has slots in the hat of the rivet, the hat splits into 3 legs during installation, the three legs distribute pressure,so more force can be applied to the material.

Trifold blind rivet applies a neoprene washer under the head, then it is water tight.

Structural Blind rivet features a wide grip range and a mechanical lock that ensures 100% mandrel retention.
